Double Shaft Guide Rail

Home / Products / Double Shaft Guide Rail / Rectangle wheel linear rail accessories OSG
Rectangle wheel linear rail accessories OSG
Model:

Rectangle wheel linear rail accessories OSG

Family Easy Assembly
Axial linear guides achieve standardization and consistency, which is convenient for customers' design and assembly.

Easy interchangeability
Guide blocks and slides are available separately. Interchangeability allows the replacement of damaged or loose parts after prolonged use by the customer.

High-speed smooth and quiet movement
Well-balanced rolling contact between the load rollers and the shaft. Double-row bearings are used to make all components of the bearings perform complete rolling motions, pretending to be linear motions, with the highest speed and no sound.
Contact Us Download PDF
PREV：LGD12E Anticorrosive linear guide/One block with 4 rolling bearing
NEXT：Double axis guideway SGB
  • Main Parameter

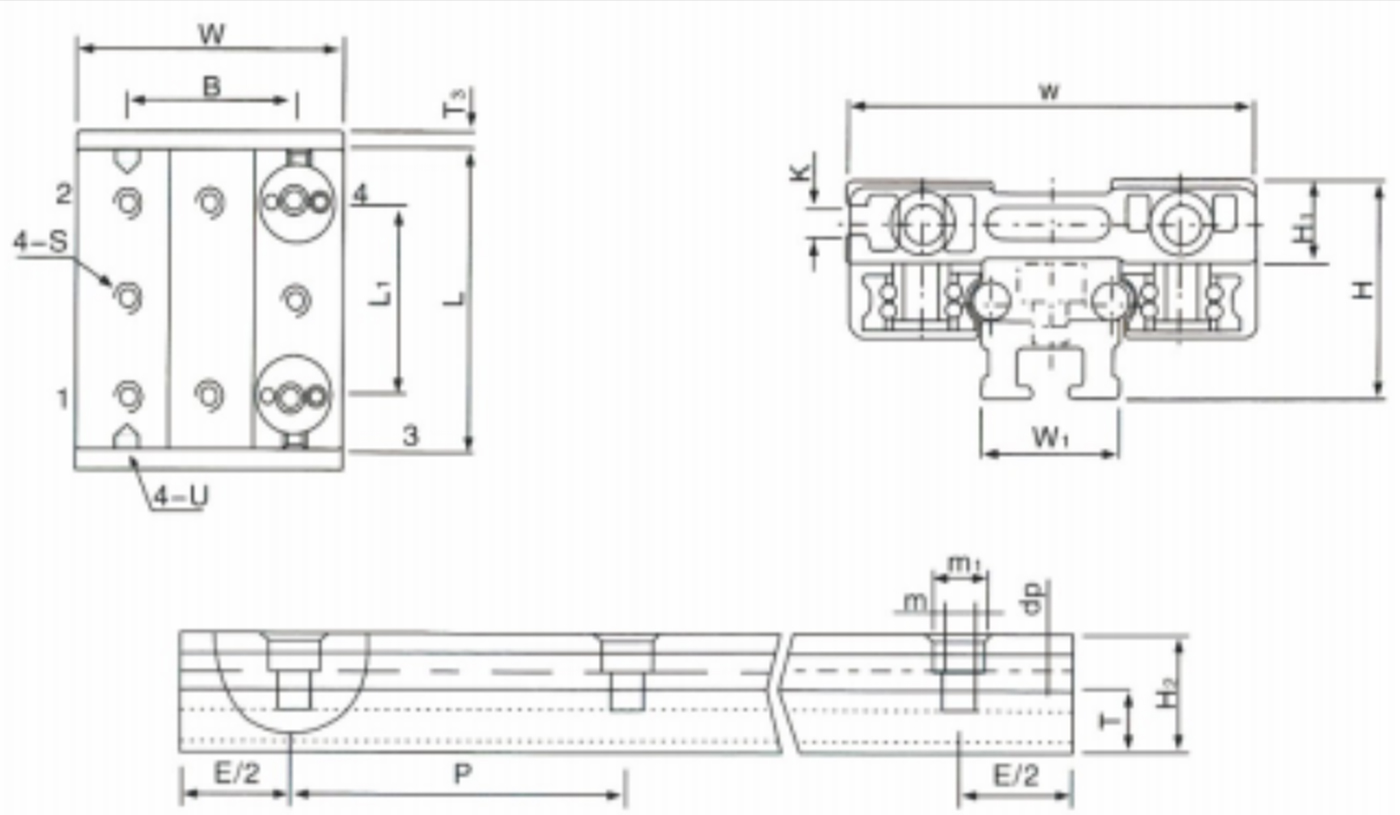

  • Design Diagram
  • OSG Full set      Guide rail SGR Sliding seat SGB
    H W W1 H2 dp P Shaft
    (Diameter)    		 Weight
    （K/m）    		 T m1 m W H1 L B L1 S U K Basic Power Safe load（N）      Power Distance
         (N.m)    		 Weight
    (gt/m)
    Yo Zo Mxo Myo Mzo
    OSG-20 30 60 26 18 6 60 6 1230 12 9.5 5.5 60 12 60 38 38 M5 M4 4.5 700 660 23.03 33.41 35.47 1541
    OSG-25 34 80 30 21 7 60 8 2015 14 11 6.5 80 12 80 51 51 M6 M5 4.5 1000 1400 62.76 95.2 68 2444
    OSG-30 40 100 36 25 9 60 10 2987 15 11 6.5 100 16.5 100 61 61 M8 M6 4.5 1800 2100 105.98 172.54 147.89 3700
    OSG-40 52 130 47 31.5 9 60 12 5216 20 14 9 130 18 130 84 84 M12 M6 6.3 4000 4000 280.64 448 448 6089
