Double axis guideway SGB
Model:

Double axis guideway SGB

Double row bearing
Double guide rails use double-row ball bearings as rolling elements. Double-row ball bearings have the great advantage of bearing axial and radial loads when rotating at high speeds. For multi-axial loads, the double-row ball bearing has two points of contact with the guide rail shaft, and the outer ring is precision ground after grooving heat treatment. Also, it has grease in it. Therefore, it does not require additional oil replenishment until the end of its useful life.

High economic benefit
It has the advantages of lightweight, corrosion resistance, good interchangeability, and convenient assembly. These are the best and wide applications for mechanical equipment.

Low total cost
The axial linear guide has the advantages of simple structure, high productivity, and convenient assembly. It has lower cost and more competitive price.
Contact Us Download PDF
PREV：Rectangle wheel linear rail accessories OSG
NEXT：Dual-shaft linear rail series LGD
  • Main Parameter

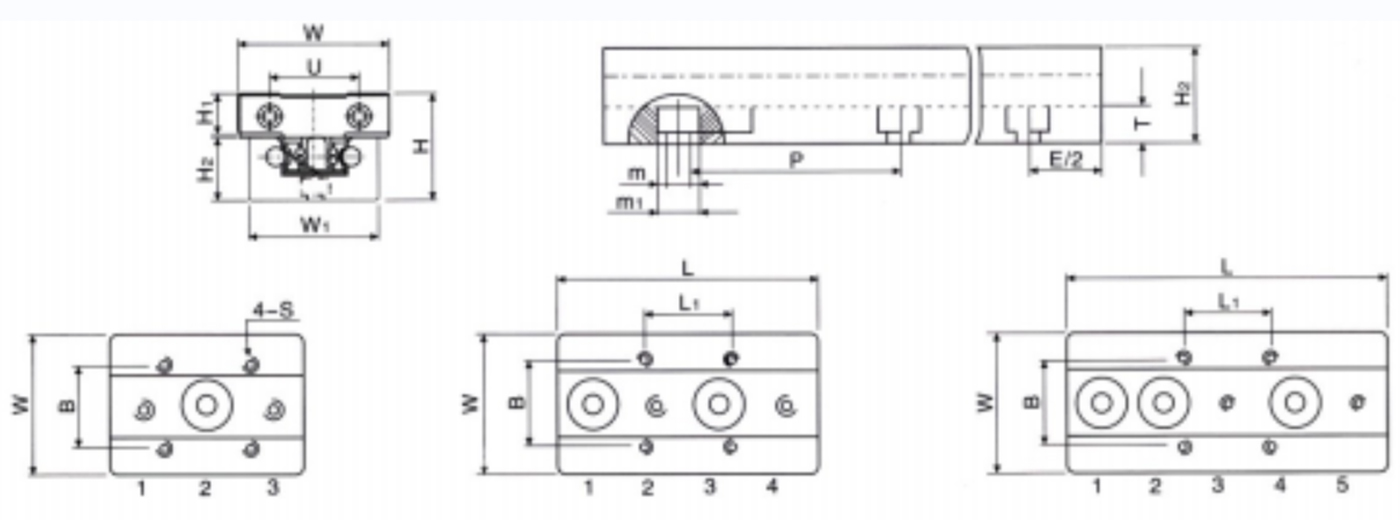

  • Design Diagram
  •   SG Full set Guide rail SGR     Slider SGB
    SGR SGB H W W1 H2 dp P Shaft
    (Diameter)    		 Weight
    (k/m)    		 T m1 m W H1 L B L1 S Pulley Number Eccentric wheel Position Basic power safety load N               Yo Zo Power Distance(N.m) Weight
    (gt/m)
    10N -3 23 28 28 14 6 60 5 1.051 5 6 3.5 26 8 47 18.5 18.5

    		 M4 3 2 343 322 6.4  6.8  7.1  0.110
    -4 63 30 4 2 450 420 10.2 11.3 11.5 0.110
    -5 83 30 5 2 480 480 0.110
    10 -3 29 28 32 17 6 60 6 1.106 6 8 4.5 28 11 88 20 70 M5 3 2 320 300 6.4 6.8 7.1 0.110
    -4 88 4 2 320 300 6.4 6.8 7.1 0.110
    15N -3 32 38 38 18.5 6 120 6 1.11 7 8.5 4.5 44 12 60

    		 26 26 M5 3 2 490 460 10.2 9.2 9.8 0.110
    -4 80 4 1.3 700 660 14.5 13.2 14 0.145
    -5 100 5 1.1.4 980 920 20.3 37 39 0.185
    15 -3 32 46 46 18.5 6 120 6 2.01 8 8.5 4.5 46 12 60 32 36 M5 3 2 490 460 13.8 7.4 7.8 0.105
    -4 80 4 1.3 700 660 19.8 21.1 22.4 0.140
    -5 100 5 1.1.4 980 920 27.7 44.3 47 0.170
    20N -3 36 47 47 22.5 6 120 8 2.32 9 9.5 5.5 47 12 80 38 30 M6 3 2 700 980 29.4 25.4 18.2 0.195
    -4 108 4 1.3 1000 1400 42 72.8 52 0.265
    -5 135 5 1.1.4 1400 1960 8.2 129 92.4 0.350
    20 -3 36 60 60 22.5 6 120 8 3.31 9 9.5 5.5 60 12 80

    		 50 40 M6 3 2 700 980 42.1 21.5 5.4 0.210
    -4 108 4 1.3 1000 1400 60.2 61.5 44 0.260
    -5 135 5 1.1.4 1400 1960 84.2 129 92.4 0.350
    25 -3 44 70 70 26 7 120 10 4.28 11 11 6.5 70 16.3 100

    		 57 45 M8 3 2 1260 1470 67.62 48.51 41.58 0.460
    -4 133 4 1.3 1800 2100 96.6 138.6 118.8 0.615
    -5 166 5 1.1.4 2520 2940 35.0  291.06 249.48 0.775
    35 -3 55 100 90 35 8.5 160 12 6.9 12 14 8.5 100 18 140

    		 82 62 M12 3 2 2800 2800 159.6 128 128 1.1
    -4 185 4 1.3 4000 4000 228 360 360 1.6
    -5 230 5 1.1.4 5600 5600 319.2 758 756 1.835

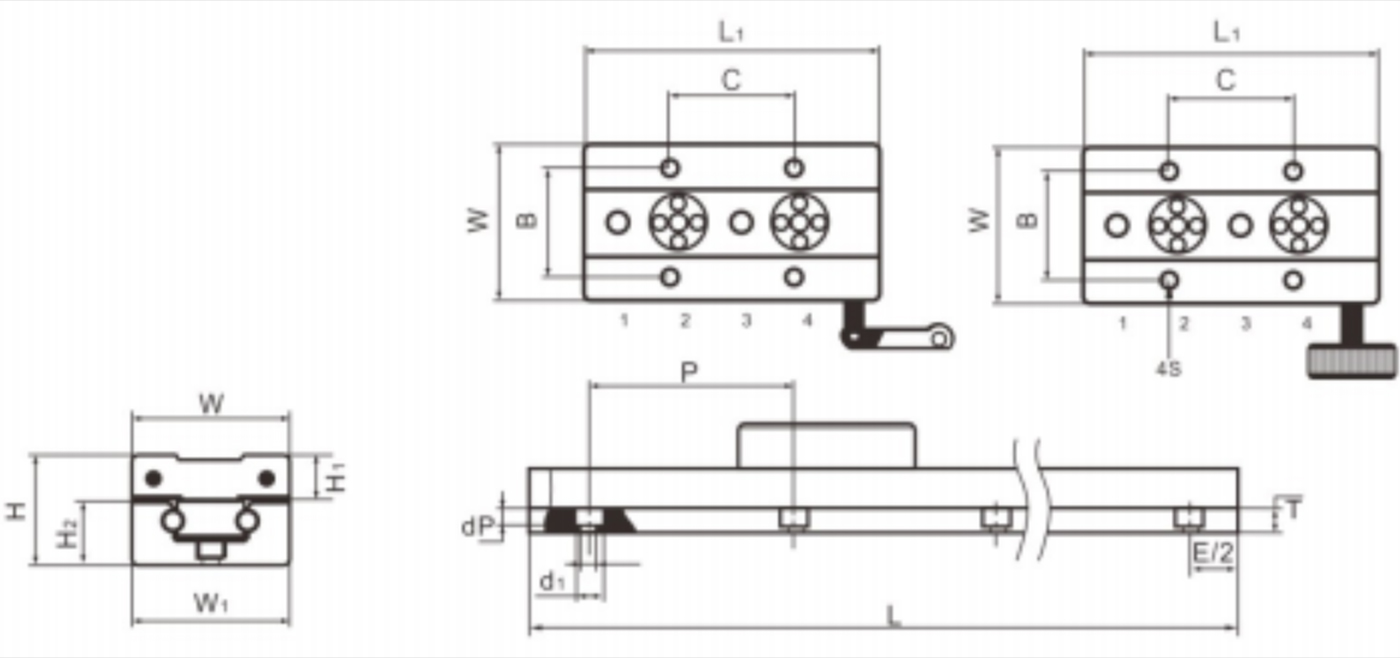

      SG Full set   Guide rail  SGR Slider SGB
    SGR SGB H W W1 H2 dp P Shaft
    (Diameter)    		 Weight
    (k/m)    		 T d d1 L1 Lmax B C H1 S Pulley Number Eccentric wheel Position Basic power safety loadN
    Yo      Zo    		 Power Distance(N.m) Weight
    (gt/m)
    10N -4 23 28 28 14 5.5 60 5 1.05 7 3.4 6 80 4000 8.9 40 8.5 M4 4 2.4 450 420 7.5 8.1 8.6 1621
    15N -4 32 38 38 18.5 5.5 20 6 1.65 7 4.5 8 100 4000 26 26 12 M5 4 2.4 700 660 14.5 13.2 14.0 2146
    15 -4 32 46 46 18.5 5.5 20 6 1.78 8 4.5 8 100 4000 32 36 12 M5 4 2.4 700 660 19.8 21.1 22.4 2426
    20N -4 36 47 47 22.5 5.5 20 8 2.25 8 5.5 9.5 130 4000 38 30 12 M6 4 2.4 1000 1400 42 72.8 52 2859
    20 -4 36 60 60 22.5 5.5 20 8 2.75 8 5.5 9.5 130 4000 50 40 12 M6 4 2.4 1000 1400 60.2 61.6 44 3688
    25 -4 44 70 70 26 6.5 20 10 3.88 9 6.5 11 160 4000 57 45 15 M8 4 2.4 1800 2100 96.6 139 119 5009
    35 -4 55 100 90 35 8.5 60 12 6.90 12 8.5 14 220 4000 82 62 18 M12 4 2.4 4000 4200 228 360 360 7500

Hot Product

  • Video Support
  • Engineer Communication
  • Online Service
We are a custom new precision ground ball screw SFY series low friction ball screw supplier and a China Double axis guideway SGB company who do OEM/ODM. The company's products are widely used in automation equipment, packaging machinery, printing machinery, food machinery, instruments and apparatus, woodworking machinery, automobile, high-speed railway, engraving machines and other industrial machinery industries. We have a good reputation in the field of automation production both in China and in other countries, and we have supplied to China domestic, India, Pakistan, Turkey, Russia, Australia and other countries. The company regards creating maximum value for customers as its responsibility, and wholeheartedly provides customers with high-quality, professional and satisfactory products.

Keep In Touch

Do You Have Any Question?

More Information About Double Axis Guideway SGB

Unlocking Precision and Efficiency: Exploring the Advantages and Applications of SGB Double Axis Guideway

Double axis guideways are critical components in various industries, providing the necessary support and guidance for smooth and accurate linear motion. Among the leading solutions in this domain is the SGB Double Axis Guideway, renowned for its exceptional performance, precision, and versatility.

1. Superior Precision: The SGB Double Axis Guideway is engineered to deliver exceptional precision in linear motion applications. With its high-quality manufacturing and advanced design, this guideway minimizes friction and eliminates unwanted vibrations, ensuring precise positioning and enhanced accuracy. This precision is vital in industries such as aerospace, automotive, and semiconductor manufacturing, where even the slightest deviations can have significant consequences.

2. Enhanced Load Capacity: The SGB Double Axis Guideway boasts a robust construction that enables it to handle high loads with ease. This feature makes it suitable for applications involving heavy machinery, such as CNC machining centers, industrial robots, and assembly lines. By providing stable support and reliable guidance, the guideway ensures smooth operation even under demanding conditions, optimizing productivity and minimizing downtime.

3. Rigidity and Stability: Stability is a key requirement in many industrial applications, and the SGB Double Axis Guideway delivers in this aspect. Its rigid structure and advanced design minimize flexing and deflection, allowing for precise and consistent motion control. This stability is particularly crucial in applications that require high-speed movements or involve cutting and machining processes, where any deviation can compromise the quality and precision of the end product.

4. Versatility and Customization: The SGB Double Axis Guideway offers versatility and customization options to cater to specific application requirements. It is available in various sizes, lengths, and configurations, allowing engineers to select the optimal combination for their systems. Whether it's a compact and lightweight design for portable devices or a heavy-duty solution for industrial machinery, the guideway can be tailored to meet diverse needs.

5. Wide Range of Applications: The versatility of the SGB Double Axis Guideway makes it suitable for a wide range of applications across different industries. It finds extensive use in CNC machining centers, where it ensures precise and repeatable movements of cutting tools and workpieces. The guideway also excels in robotics, providing reliable support for robot arms and allowing for accurate positioning in assembly and handling operations. Furthermore, it is utilized in industries such as medical equipment, semiconductor manufacturing, and packaging, where precision and reliability are paramount.

In conclusion, the SGB Double Axis Guideway offers numerous advantages that make it a preferred choice in various industries. Its superior precision, enhanced load capacity, rigidity, and stability enable seamless and accurate linear motion control. The guideway's versatility and customization options further enhance its applicability to diverse systems and applications. Whether it's in CNC machining, robotics, or other precision-driven industries, the SGB Double Axis Guideway ensures optimal performance and plays a vital role in unlocking efficiency and precision.
